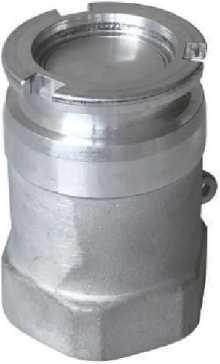

DDA300-ALV 3" dry disconnect adaptor (Tank Unit)

EasyDry DDC series dry disconnect are engineered  the for the quick and spill free connection and disconnection of hoses and pipelines when transferring expensive hazardous product that is costly to clean up, reprocess or dispose of. The main feature of EasyDry couplings are:

•  easy to handle - push and turn - free flow, turn and pull - closed

•  time saving - no need to drain hoses or pipe systems

•  economical - no loss or spillage of liquids at connection or disconnection

•  safety - the valve cannot be opened until the unit is coupled

•  environment friendly - accidental spillage eliminated when properly used

•  safe and reliable - due to rugged construction

•  product life - uncomplicated design and high quality materials ensures long product life

•  produced according to NATO standard STANAG 3756

•  interchanges with other brand which follows  STANAG 3756 standards

Applications

For industrial process plant, road and rail tankers,ISO containers, IBC containers, Pharmaceutical, Aviation fuel bunkering and Petrochemical industries or on any application where spillage needs to be minimized.

Specification

SKU: DDA300AL

Size: 3 in.

Brand: EasyDry

Material: Aluminum

Seal-Material: FKM (Viton)

Product Type: Bayonet

Exterior Finish: Aluminum

 End Connections

3" in FBSP, FNPT

Media

Petroleum products: Gasolin, diesel, oil etc.

Chemical products:Ethylene Oxide, Propylene Oxide, Acrylonitrile, Butadiene, Ammonia, Vilyl Chloride, Toluene, Xylene, Sulphuric, Acid, Phenol etc.

Other:AdBlue®/ Diesel Exhaust Fluid (DEF)

 Optional Connections (consult EasyDry for details)

01 = Viton® (FPM/FKM)

11 = Viton - GF (Special Viton quality)

21 = Viton GF-LT

31 = Viton GLT

02 = FEP PTFE encapsulated Viton

12 = FEP encapsulated silicone

03 = EPDM

04 = Perfluorelastomer (FFPM)

14 = Chemraz 505 or equivalent

24 = Kalrez (PFPM) 1050LF or equivalent

34 = Kalrez (FFPM) 6375 or equivalent

04 = Nitrile® (NBR)

14 = NBR Low temp

24 = Nitrile (Gasol NBR 70 K-6 or equivalent)

34 = Zetpol / Therban (HNBR) or equivalent

44 = NBR 90 shore

05 = Teflon (PTFE)

06 = Neoprene (CR)

07 = Silicone (Q)

08 = Vulkollan (PUR) or equivalent

09 = Butyl (IIR)

A2 = Composite

A3 = PVC / NBR

A4 = Fluorsilicone rubber (MFQ)

A5 = Klingerit

A6 = Hypalon (CSM) or equivalent

A8 = Xyflour 860 or equivalent

A7 = Epiclorhydrin

A9 = POM
