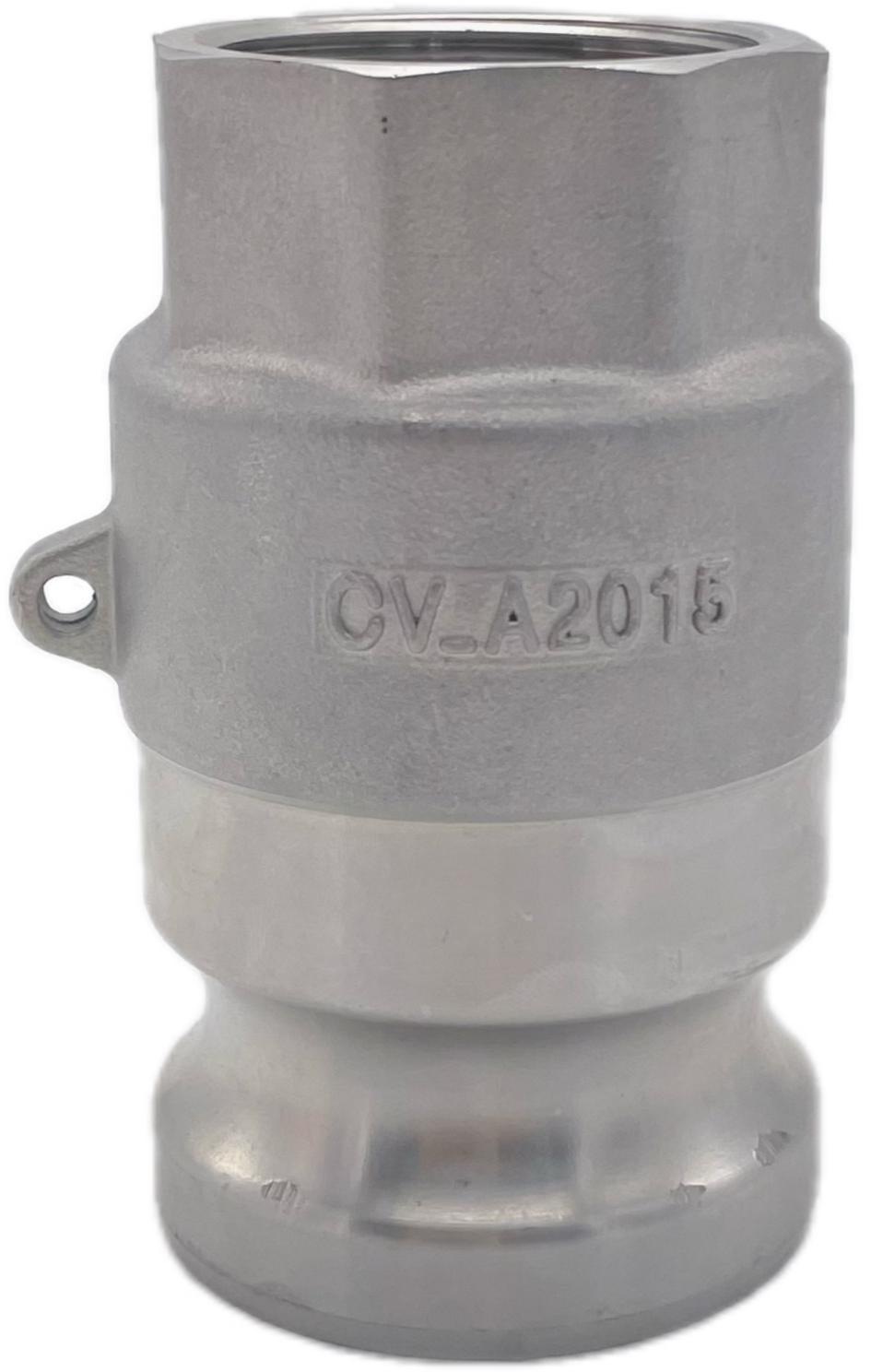

DBA300-ALV 3" TPLok adaptor (Tank Unit)
DBA300-ALV 3" TPLok adaptor (Tank Unit)
S$379.00
EasyDry TPLok is Cam & Groove Style Dry disconnects and compatible with most other brands of cam and groove style dry disconnects
Features
Heavy duty construction provides long service life
Coupler has automatic closing poppet assembly
Stainless steel handle allows product exposure to corrosive chemicals or washdown service
Strong handle attachment prevents bending of crank assembly
Large paddle type cam arms are standard on 3" fittings, allow for an easy grip
Contact EasyDry at whatsapp +6580537572 for chemical compatibility, size, material selection and special configurations.
Construction
Aluminum
Stainless steel internals
Heavy duty stainless steel handle, crank and link
Notes
Must be used with a DBC (Dry Break Cam & Groove) Style coupler for adaptor to operate. Coupler sold separately.
For pressure ratings at other temperatures, contact EasyDry at whatsapp +6580537572
Use with standard cam and groove dust plug sized one size larger than the dry disconnect size
Applications
For industrial process plant, road and rail tankers,ISO containers, IBC containers, Pharmaceutical, Aviation fuel bunkering and Petrochemical industries or on any application where spillage needs to be minimized.
Specification
SKU: DBA300AL-FNPT
Size: 3 in.
Brand: EasyDry TPLok
Material: Aluminum body with Stainless Steel internal and handler316
Seal-Material: FKM (Viton)
Product Type: Cam and Groove Style x FNPT
End Connections
2-1/2" in FNPT
Media
Petroleum products: Gasolin, diesel, oil etc.
Chemical products:Ethylene Oxide, Propylene Oxide, Acrylonitrile, Butadiene, Ammonia, Vilyl Chloride, Toluene, Xylene, Sulphuric, Acid, Phenol etc.
Other:AdBlue®/ Diesel Exhaust Fluid (DEF)
Optional Connections & Seal (consult EasyDry for details)
01 = Viton® (FPM/FKM)
11 = Viton - GF (Special Viton quality)
21 = Viton GF-LT
31 = Viton GLT
02 = FEP PTFE encapsulated Viton
12 = FEP encapsulated silicone
03 = EPDM
04 = Perfluorelastomer (FFPM)
14 = Chemraz 505 or equivalent
24 = Kalrez (PFPM) 1050LF or equivalent
34 = Kalrez (FFPM) 6375 or equivalent
04 = Nitrile® (NBR)
14 = NBR Low temp
24 = Nitrile (Gasol NBR 70 K-6 or equivalent)
34 = Zetpol / Therban (HNBR) or equivalent
44 = NBR 90 shore
05 = Teflon (PTFE)
06 = Neoprene (CR)
07 = Silicone (Q)
08 = Vulkollan (PUR) or equivalent
09 = Butyl (IIR)
A2 = Composite
A3 = PVC / NBR
A4 = Fluorsilicone rubber (MFQ)
A5 = Klingerit
A6 = Hypalon (CSM) or equivalent
A8 = Xyflour 860 or equivalent
A7 = Epiclorhydrin
A9 = POM
