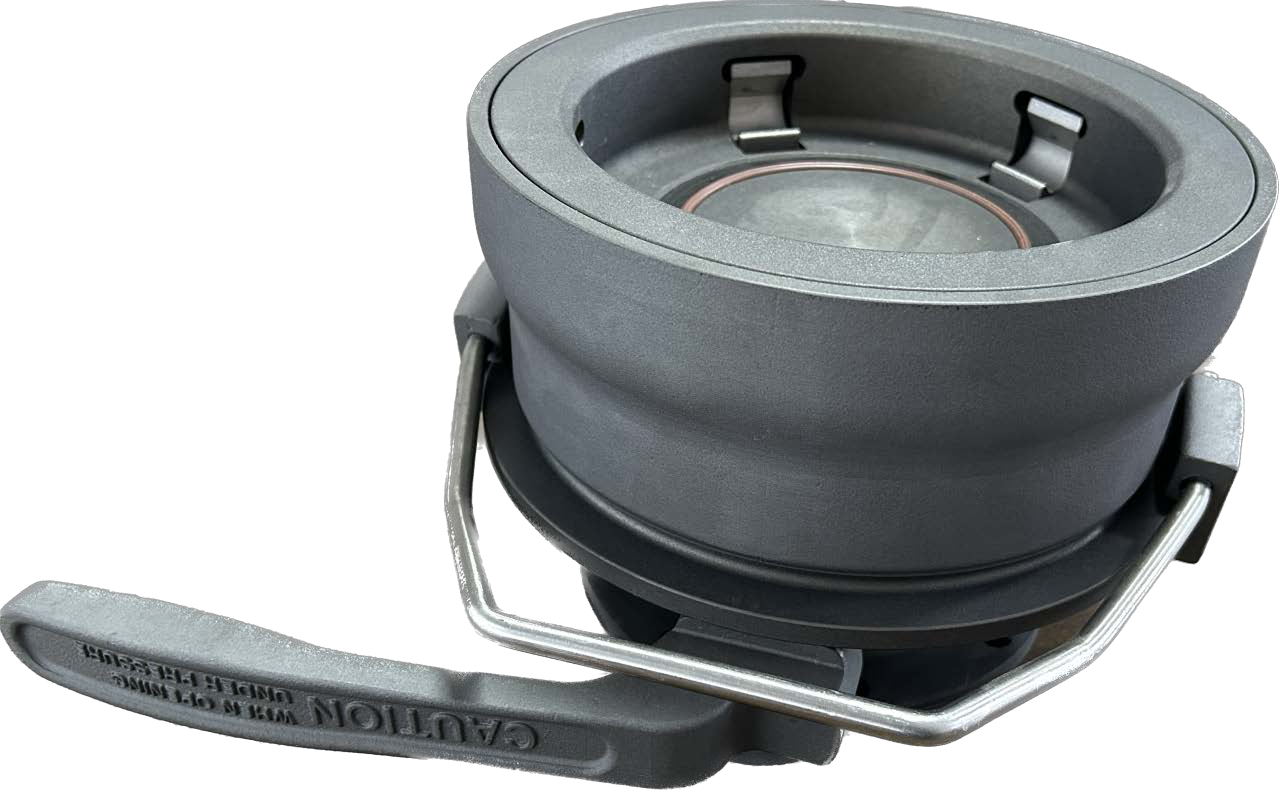

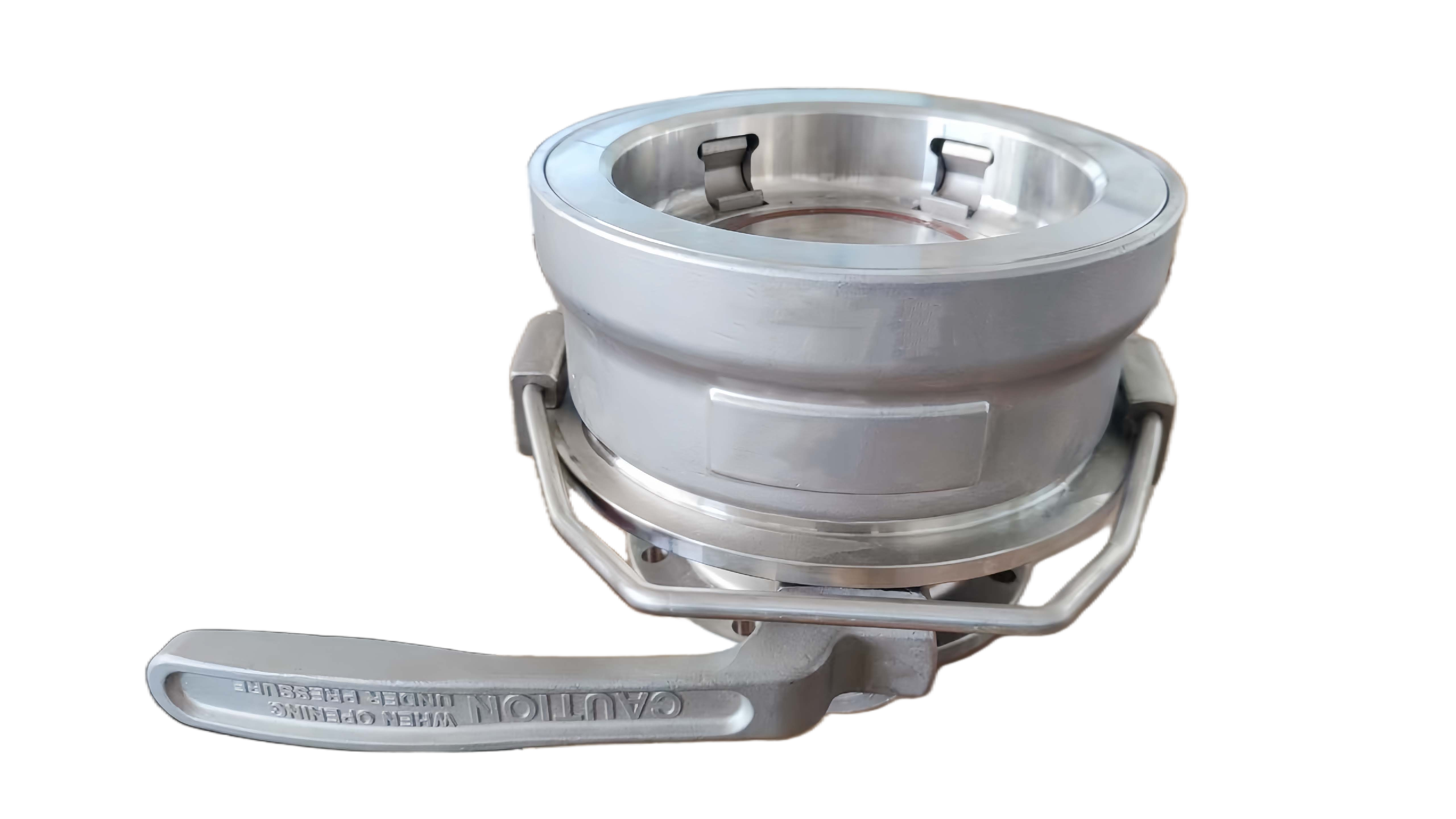

API 14A Aluminum/14S SS Coupler

EasyDry API Coupler is  design as per API RP1004&EN 13083 and Combined with API adapters, these couplers are suitable for tank truck loading or unloading

Features

Locking five-cam design provides easy alignment and tight connection

Modular design allows various face seal combinations to be compatible with different alternative fuels, performance levels, and applications

Replaceable nose seal can be changed without removing coupler from loading arm

Fully interlocked collar creates a secure connection

4” TTMA inlet mounting flange connection

Construction

Body: Aluminum anodized hard-coat or Stainless Steel 316

Cam: stainless steel

Poppet: Aluminum anodized hard-coat

Seals: FKM-GFLT standard; EPDM, Fluoroelastomer, FKM-B

Handle: aluminum, stainless steel

Specifications

Flow rate: Max flow 145 m3/h

Fully compliant with API RP 1004:2003 specifications

Seal operating temperature:

• EPDM: -28°C to 121°C

• FKM-B: -23°C to 204°C

• FKM-GFLT: -34°C to 204°C

• Fluorosilicone: -45°C to 176°C

Chemical Compatibility

EPDM (Buna seals):

•  gasoline

•  diesel

•  10% ethanol

•  B2 biodiesel blends

(FKM-B seals):

•  gasoline

•  diesel

•  jet fuel &avgas

•  100% ethanol

•  100% methanol

•  100% biodiesel

•  any blend of the above fluids
